Coupling Expansion Bushing Z5 Expansion Sleeve Shaft Locking Device Assembly STK602/RFN7515/LOCK16 Fastening Sleeve CNC Tool Tension Sleeve(Z5 110x155)

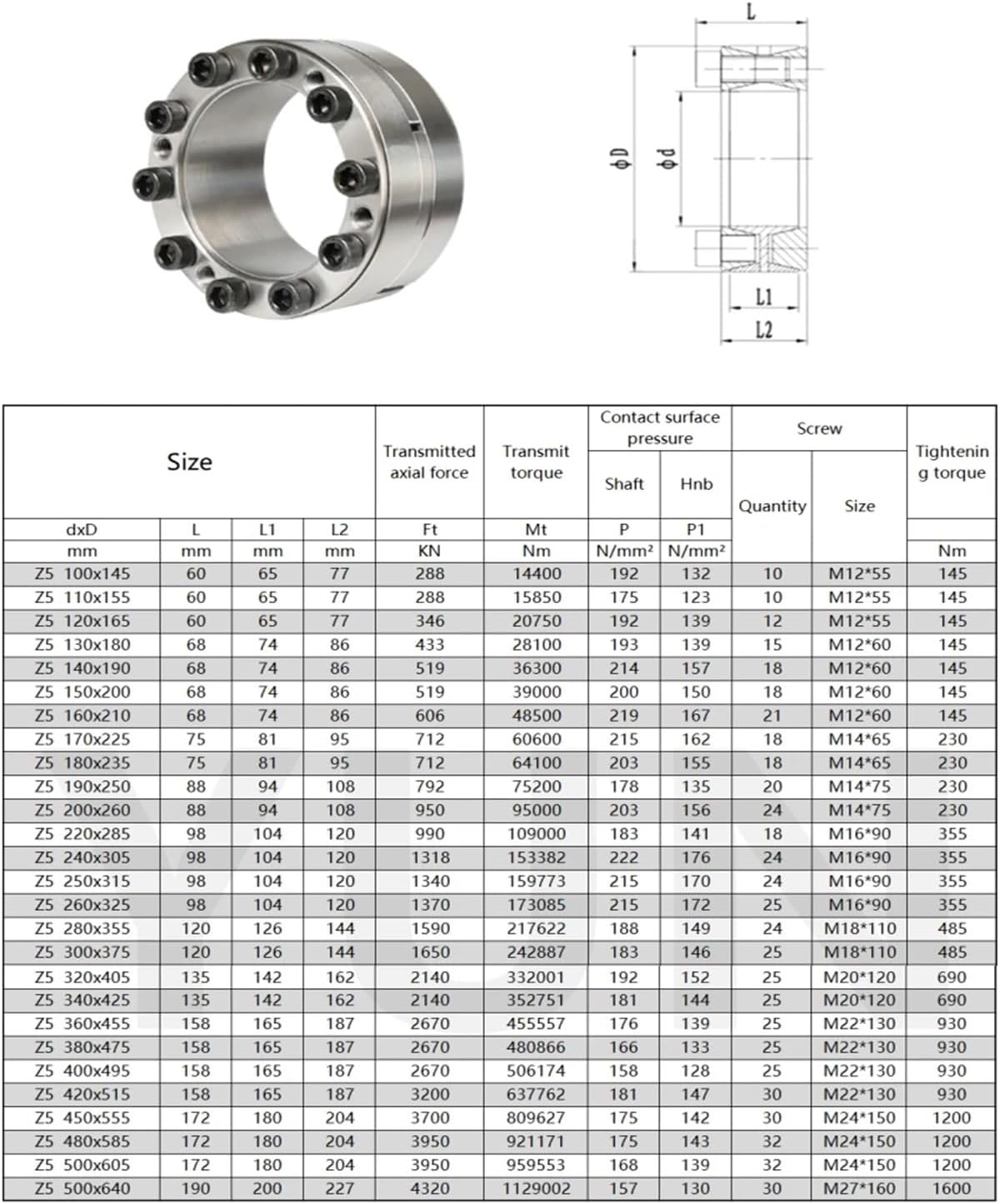

Z5 Expansion Sleeve Shaft Locking Device Assembly STK602/RFN7515/LOCK16 Fastening Sleeve CNC Tool Tension SleeveZ5 expansion sleeve is a transmission part product with keyless connection structure. Under the action of axial force, the inner and outer sleeves of the expansion sleeve shrink and expand to make the shaft and hub closely fit and generate enough friction to transmit torque, so as to achieve the purpose of mechanism operation.Z5 100x145Z5 110x155Z5 120x165Z5 130x180Z5 140x190Z5 150x200Z5 160x210Z5 170x225Z5 180x235Z5 190x250Z5 200x260Z5 220x285Z5 240x305Z5 250x315Z5 260x325Z5 280x355Z5 300x375Z5 320x405Z5 340x425Z5 360x455Z5 380x475Z5 400x495Z5 420x515Z5 450x555Z5 480x585Z5 500x605Z5 500x640Origin : ChinaModel Number : Z5

• 【Product Function】: The main function is to tighten the high-strength bolts to produce a huge clamping force between the shaft and the hub, so as to realize the transmission of loads.
• 【Product Features】: Expansion sleeve coupling can transmit large torque through the cooperation of expansion sleeve and shaft, which is suitable for heavy load or medium and low speed transmission system.
• 【Application scope】: Expansion sleeve is widely used in various mechanical equipment, especially in the need for high load transfer occasions.
• 【Material】: Made of high quality materials to ensure resistance to abrasion and tearing, as well as ensuring excellent durability and strength, long-lasting.
• 【Easy to install】: Expansion couplings are designed to be user-friendly and can be installed, adjusted and disassembled directly.
